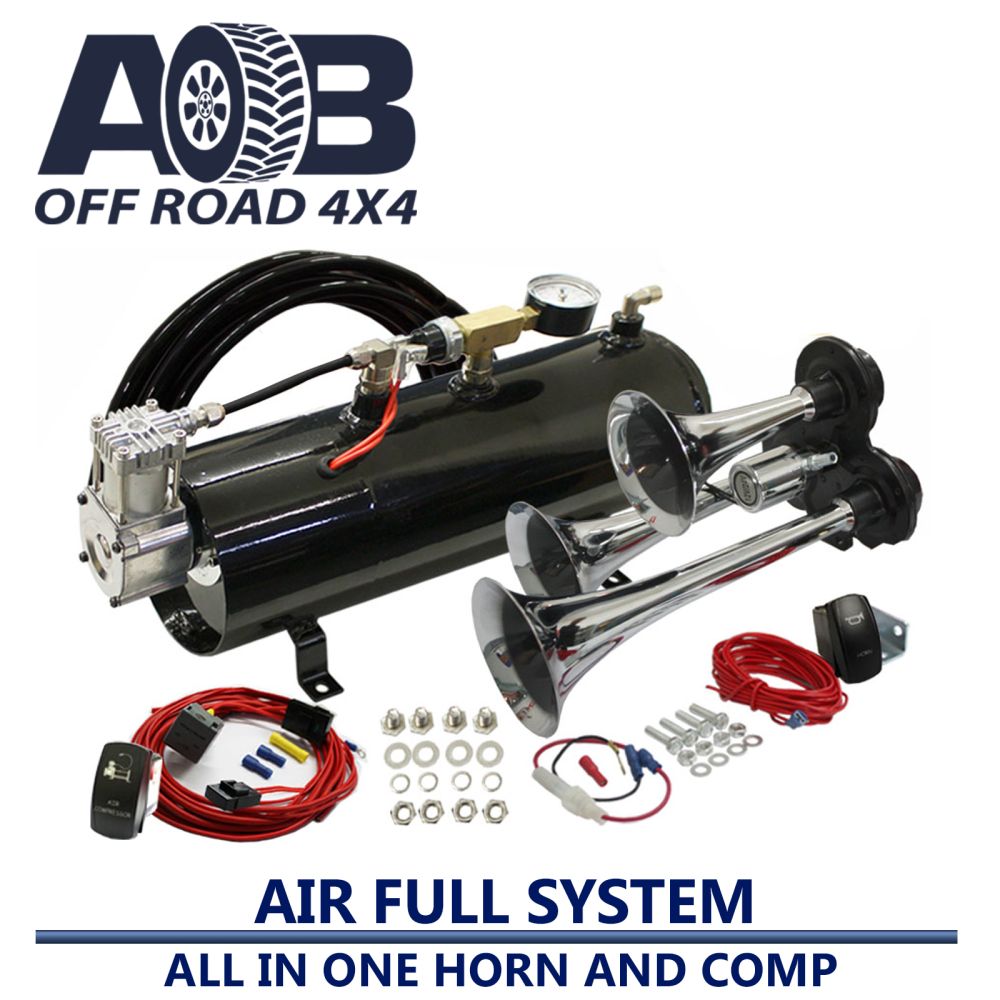

12 Volt 120psi Compressor, 3L Tank and 3 trumpets 148BD Train Horn Universal Full System for Toyota/Nissan/Holden/Mitsubishi etc
As low as $236.00
A universal complete air system with one 12 Volt 120psi inbuilt compressor, 3 Litre tank, 3 trumpets air horn and other accessories included
In stock
SKU
AOBCM680803
12 Volt Compressor, Tank with 148BD Train Horn
Complete Air System
This compressor system comes with all the following items:
- 12 Volt Inbuilt compressor
- Permanent Magnetic Motor
- 3.0 Litre 0.8 gallon tank
- 85Psi on / 105 Psi off pressure switch
- Inline Check Valve
- 120 psi pressure gauge
- Mounting Bolts
- Full wiring kit
- Instructions
- Dimensions: 432 mm L x 160 mm W x181 mm H
- Mounting legs 145 mm wide (between 2 bolt holes' center)
- Amp Draw: 12A
- Thermal Protection: YES
- Tank Fill Time (0-105psi): 1Min.58Sec
- Recovery Time (85-105psi): 21 Sec
- Pressure Max: 120 psi
- Duty Cycle: 10% at 100 psi
- Flow Rate: 1.27 CFM (36LPM) at 0 psi
Please Note:
- The Compressor system MUST be mounted upright only and MUST be mounted in a clean and dry area only
- The drain tap sits lower than the mounting feet which requires either a hole to be drilled to give clearance or spacers to lift the compressor up
The Train horns are the second loudest only beaten by our 904 series train horns on the market today. Generating 148db of sound this horn set is VERY LOUD. It comes complete with the following items:
- Mounting hardware: Stainless steel.
- Air fitting: 8mm barb fitting
- 12/24 volt Solenoid
- Mounting bolts
- 3 mtr air line.
- In dash horn switch.
- 3 mtr power wire.
As a bonus you will also be able to fill tires, Run Air jacks, run your ARB air lockers, air bags and train horns, all from your 4WD or car with this compressor.
MOST IMPORTANT : DO NOT MOUNT THIS COMPRESSOR WHERE IT COULD GET WET!
AOBHN803 AIR HORN
- Horn Diameter: 93mm
- Sound output: 148db / 150 Hz
- Horn construction: ABS bright chrome plated finish.
- Heavy duty.
- Easy set up by hooking up to the 12/24 Volt solenoid.
- 3 Trumpet Lengths : 250mm, 190mm, 130mm
WIRING KIT
Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 12 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire.
- 100 mm black earth cable.
- 12 volt 40 amp relay.
- 3mtr 3mm power cable.
- low amp fuse holder.
- High amp fuse holder.
- 12 volt toggle switch.
- All connectors, pre-wired ready to install .
| Comp Max Pressure | 120Psi |
|---|---|
| Horn | 3 Trumpets |
| Tank | 3 Litre |
