12 Volt 200psi Twin Air Compressor Kit

Compressor Test Result

Test Conditions

• All tested direct from battery with vehicle running
• charge voltage of 13.7
• All running directly to tank with 700 mm leader hose

12 VOLT 200PSI TWIN AIR COMPRESSOR

This 12 volt compressor has A full Steel body. With a maximum output of 200 Psi and a duty cycle of 100% at 72 deg F&100 psi it will provide you with enough air for all your needs.

• 12-Volt
• Permanent Magnetic Motor
• Independent power output: Dual fuses and relays allows compressor to operate independently if 1 fails the other continues running
• Mounting: Vertical or Horizontal
• Cooling: Cooling fan cooled
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 200 PSI
• Pressure switch: 90 on 120 psi Off
• Max. Air Tank Size: 5 gallon
• Ingress Protection Rating: IP67

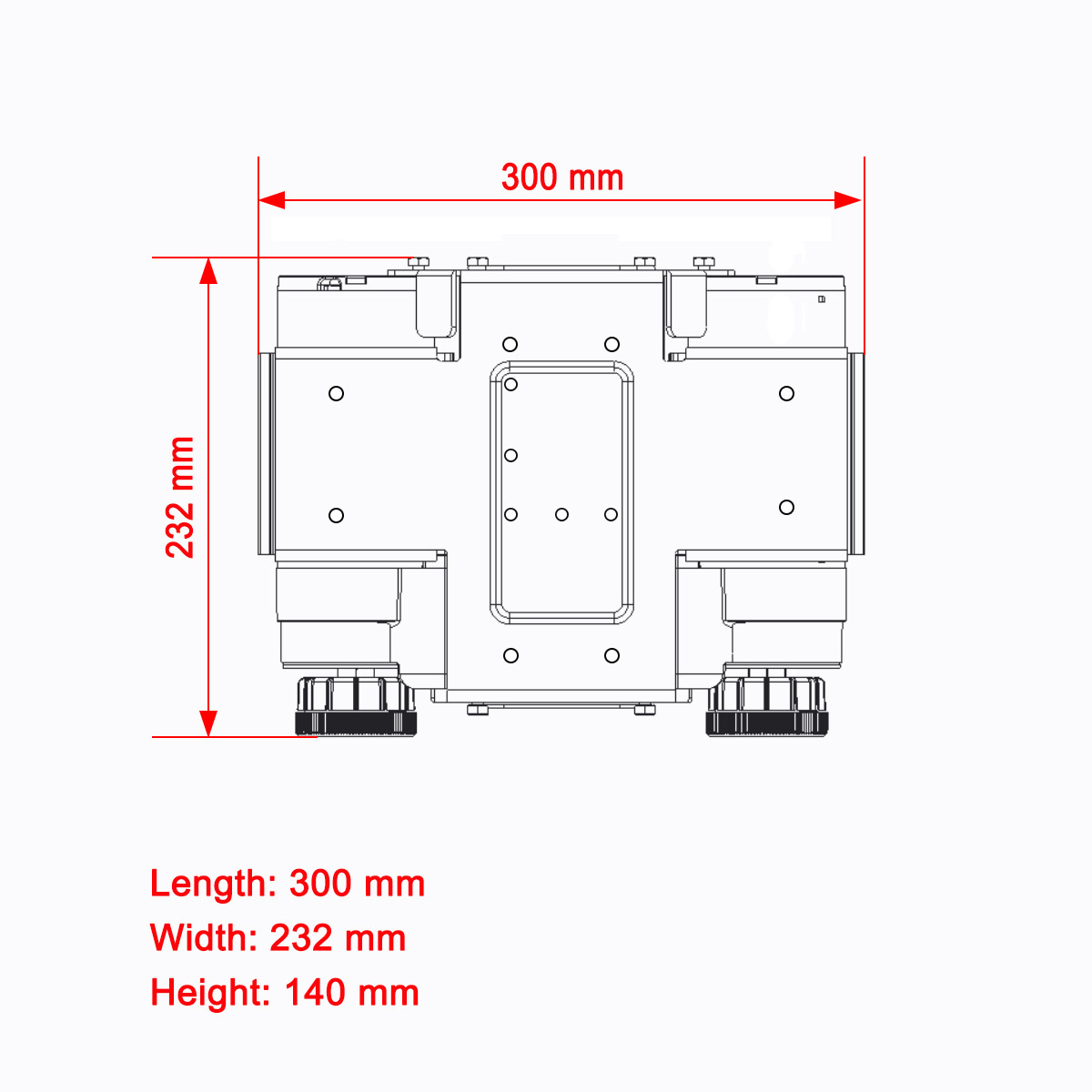

• Dimensions: 300mm(L) x 232mm(W) x 140mm(H)
• Net Weight: 13KG

Fill tires, Run Air jacks, Pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

The Following Items included in the Package:

• 1 x 12V 200psi Twin Air Compressor
• 1 x Tyre Inflator
• 1 x Air Hose 7 Meters in Length
• 1 x Wiring harness 4.5 meters in Length
• Installation Instructions ( download )
