12 Volt 200psi Twin Air Compressor 6 Litre 200 Psi Air Tank Universal Full System for Nissan/Holden/Mitsubishi/Toyota Hilux etc
As low as $876.00
A universal complete air system with one 12 Volt 200psi Twin Air Compressor, one 6 Litre 200psi tank and other accessories included
In stock
SKU
AOBFSX806
Compressor Test Result
Test Conditions
- All tested direct from battery with vehicle running
- charge voltage of 13.7
- All running directly to tank with 700 mm leader hose
- ARB single and twin doesn't run a oneway valve it just relies on the reed
- ARB single and twin come with 70 to 100 psi pressure switch
- ARB single and twin comes with own wiring loom and carling type switch
- ARB single and twin have built in pressure relief valves into head assembly
- ARB single and twin have max running pressure of 150 psi
AOB Complete Air System With 12 Volt 200 Psi Twin Air Compressor & 6 Litre 200 Psi Air Tank
AOB Air Compressor Kit Install Into A 200-series LandCruiser YOUTUBE VIDEO
This system comes with all the following items:
- ''Air On Boards'' 12V 200psi AOBCMX8 compressor
- 6 litre tank rated at 200psi
- Tyre Inflator
- Air Hose 7 Meters in Length
- Wiring harness 4.5 meters in Length
- 1.5 meter High Temp Steel Braided Air Hose
- 3 meter Low Temp High Pressure Air Hose
- Manifold Set
- Instruction Manual
It can be used to fill tires, run Air jacks, pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.
- 12 Volt DC
- Duty cycle: 100% at 100psi
- Max working pressure: 200 psi
AOBCMX8 COMPRESSOR
This 12 volt compressor has A full Steel body. With a maximum output of 200 Psi and a duty cycle of 100% at 72 deg F&100 psi it will provide you with enough air for all your needs.
- 12-Volt
- Permanent Magnetic Motor
- Independent power output: Dual fuses and relays allows compressor to operate independently if 1 fails the other continues running
- Mounting: Vertical or Horizontal
- Cooling: Cooling fan cooled
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Pressure switch: 90 on 120 psi Off
- Max. Air Tank Size: 5 gallon
- Ingress Protection Rating: IP67
- Dimensions: 300mm(L) x 232mm(W) x 140mm(H)
- Net Weight: 13KG
AOBTK206
This is the second smallest tank in our range and has been designed to fit the tightest area. The tank comes including a bottom a drain tap that is used to empty any condensate that is collected during the running cycle along with all the blanking plugs required to fit the full system.
AOBTK206 Dimensions
410mm x 193mm x 173mm.
Ensure you have the room to fit this tank.

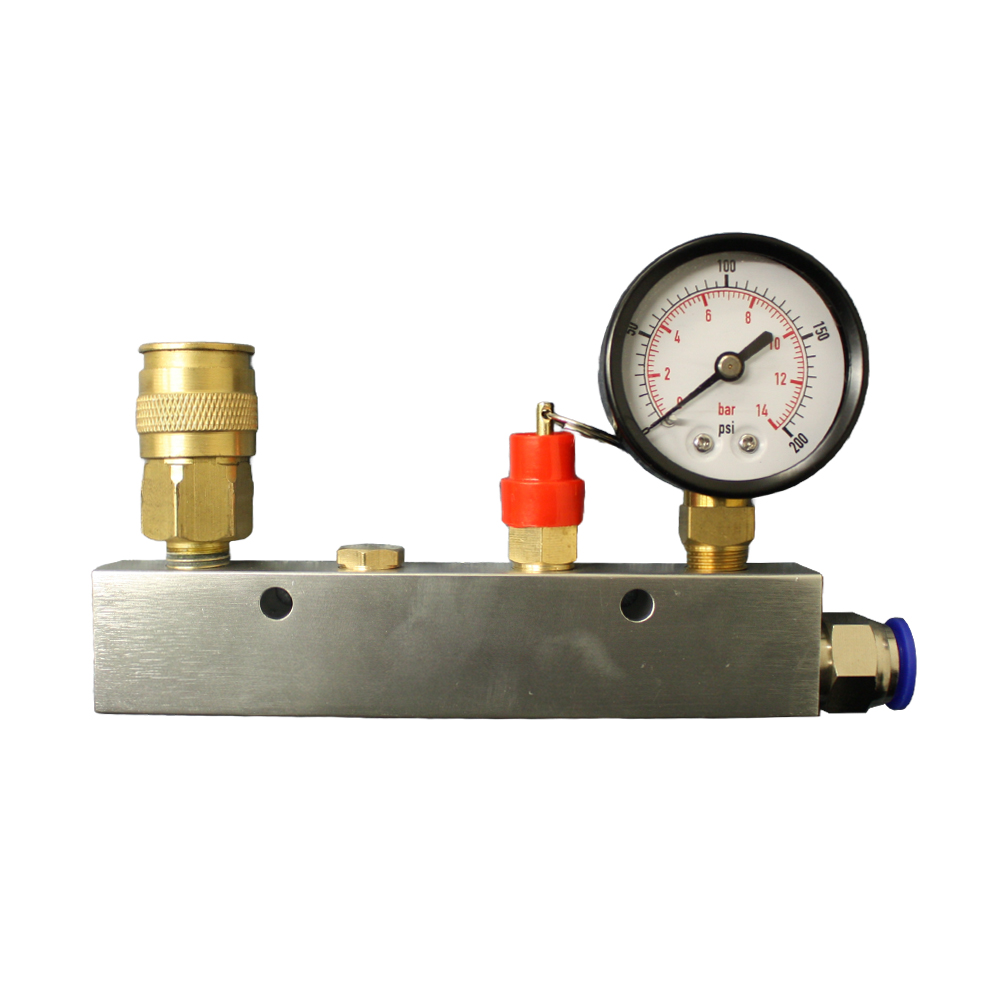

AOBMB770 MANIFOLD SET
Included with this system are all the air accessories needed for your system in this neat manifold block. Makes for easy installation.
AOBHS202 High Temp Steel Braided Air Hose
- OD of hose is 8.8mm.
- 1/4'' BSP male fitting both ends.
- Temperature range of -40°C to 250°C.
- Excellent flexibility.
- Pressure range to 350 PSI.
- 1.5 meter in length.
AOB Low Temp High Pressure Air Hose
- OD of hose is 14mm.
- ID of hose is 10mm.
- Pressure range to 200 PSI.
- 3 meter in length.
| Comp Max Pressure | 200Psi |
|---|---|
| Horn | Without Horn |
| Tank | 6 Litre |
