12V Air Suspension System PG220E + CM250
$480.00
12V Air Suspension System Kit FROM AOB with 150psi Air compressor, Pressure Gauge Panel, 1/4 PU Air Hose, 4 x Air Fittings and Wiring Kit included
Availability:
In stock
SKU
CM250220E
CM250220E 12 Volt Compressor
This 12 volt compressor has A full Steel body and an output of 0.88 cfm. With a maximum output of 150 Psi and a duty cycle of 100% at 72 deg F&100 psi it will provide you with enough air for all your needs.
Offering economically-priced, easy control of air bag load support solutions, this will have your vehicle back on the level in no time. For drivers of light- to medium-duty vehicles, AOB air suspension leveller provides the maximum convenience, for leveling on-the-go. AOB air suspension leveller offers convenient and easy adjustability of your air suspension pressures, based on changes in load weight and road conditions. With an in-cab gauge control panel, you can inflate your air bags at just the flick of the air toggle switches. The easy-to-read pressure gauge allows for on-the-go adjustments, with one gauge and dual needles and simple inflate and deflate air toggle switches. AOB air suspension leveller is a dual-path system, meaning that each air bag will be inflated or deflated independently of each other which is great for uneven loads and stopping the air being forced from one bag to the other when cornering which increases body roll
- Pushing up on the air toggle switch will engage the air compressor which allows you to inflate the air bag to your desired pressure
- Pushing down will deflate the air bag
This system is great for using with load assist air bags or heavy duty air bags and best of all no air tank is required with this setup
WARNING
MUST be used to activate a fused relay and not wired directly to the Air Compressor Failure to do so will result in damage or even worst fire and under no circumstances will this be covered under warranty due to improper wiring or fitment
The Following Items included in the Package:
- ''Air On Boards'' CM250 compressor
- Mounting Hardware
- Vibration Isolators
- Heavy Duty 1/4" Check Valve
- Stainless Steel Braided PTFE-Lined Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Pressure Gauge 220E
- Full wiring kit
- 1X 18 Meters 1/4 PU Hose
- 1X Female 1/4 Bsp Joiner
- 2X 1/4 PU T Pieces
- 1X Bsp to 1/4 PU Male
- Installation Instructions
Fill tires, Run Air jacks, Pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.
Specifications:
Performance Data

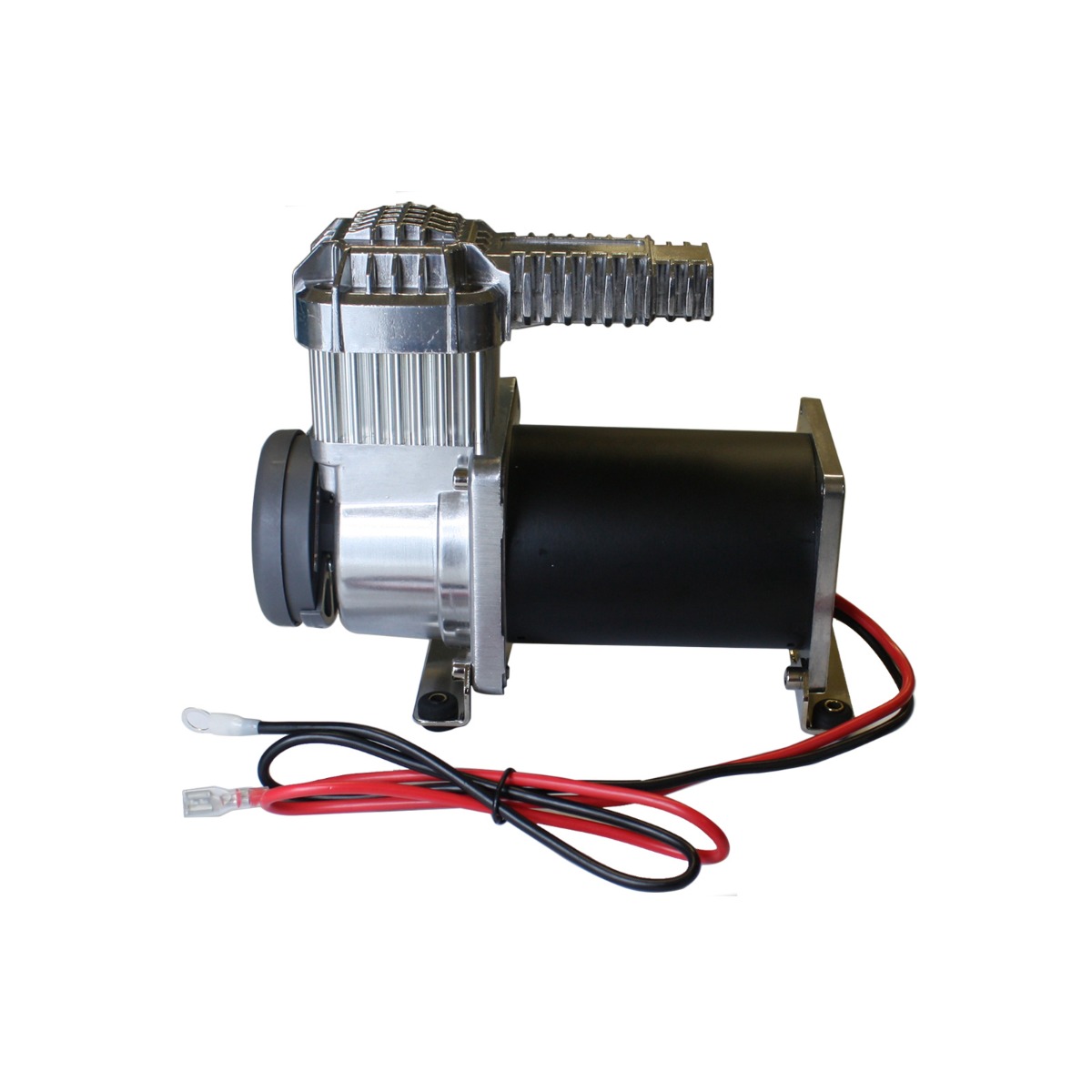

CM250 COMPRESSOR
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 2.5 gallon
- Max. 12V Amp Draw: 11 Amps
- Ingress Protection Rating: IP67
- Dimensions: 188 x 99 x 171.5mm
- Net Weight: 3.1KG
ELECTRIC PRESSURE GAUGE 220E
- Fitted with one of Genuine VIAIR 160psi Twin needle gauge sets along with 2 AOB Air control paddle switches
- Inlet and outlet is by 1/4'' PU hose
- Maximum pressure of the air paddle switch: 110 psi
- Panel face measurement: 145mm x 79mm x 85mm
WIRING KIT
Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 24 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire.
- 100 mm black earth cable.
- 24 volt 30 amp relay.
- 3mtr 4mm power cable.
- 3mtr 3mm power cable.
- low amp fuse holder.
- High amp fuse holder.
- 24 volt rocker switch.
- All connectors, pre-wired ready to install .

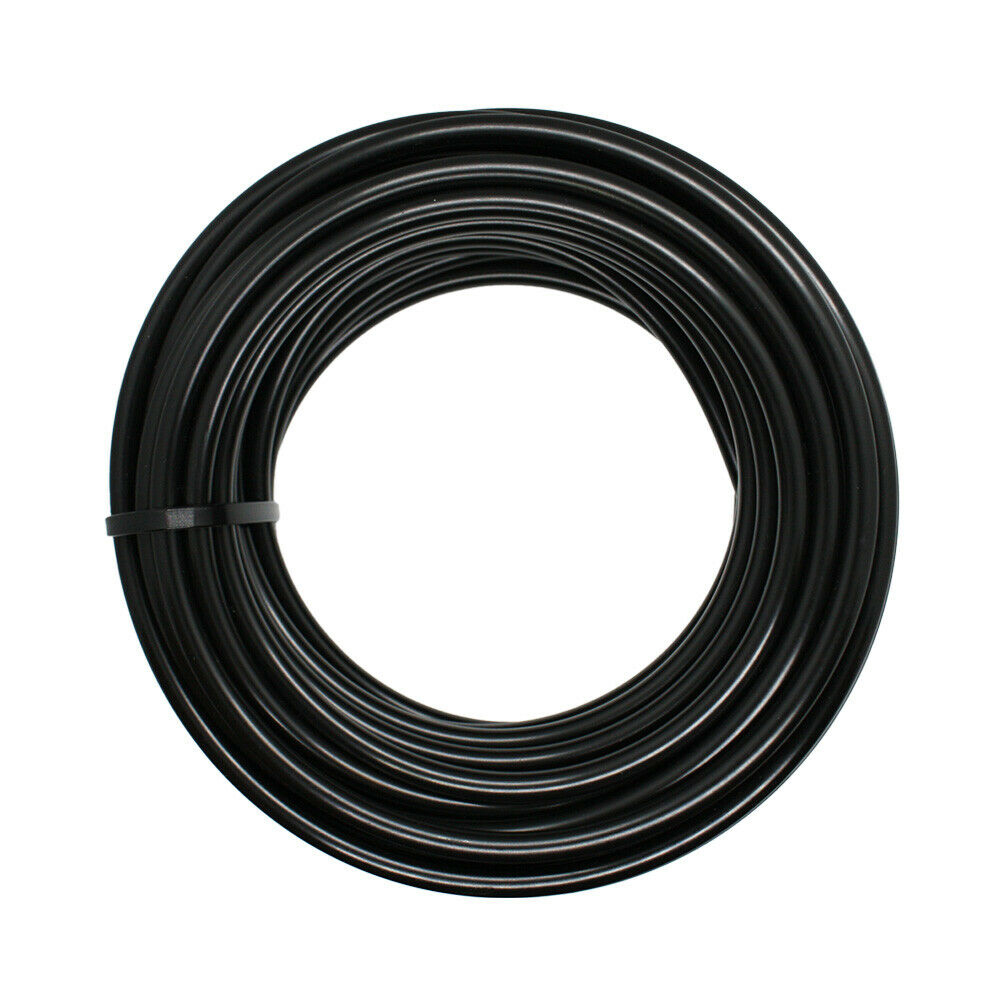

1/4'' PU HOSE
- Length: 18 meter
- OD of hose is 1/4'' (6.35mm)
- ID of hose 11/64'' (4.36mm)
- Temperature range of -20°C to 110°C
- Excellent fexibility
- Pressure range to 180PSI

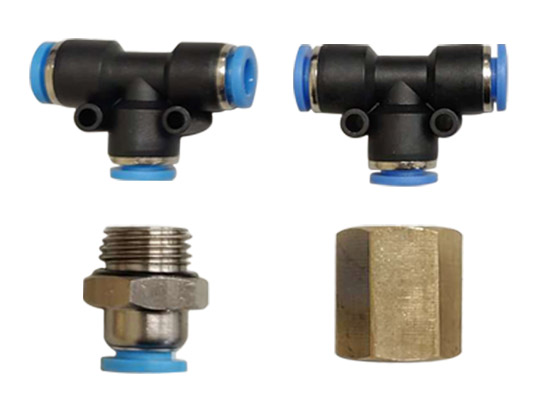

AIR FITTINGS
- 1X Female 1/4 Bsp Joiner
- 2X 1/4 PU T Pieces
- 1X Bsp to 1/4 PU Male
