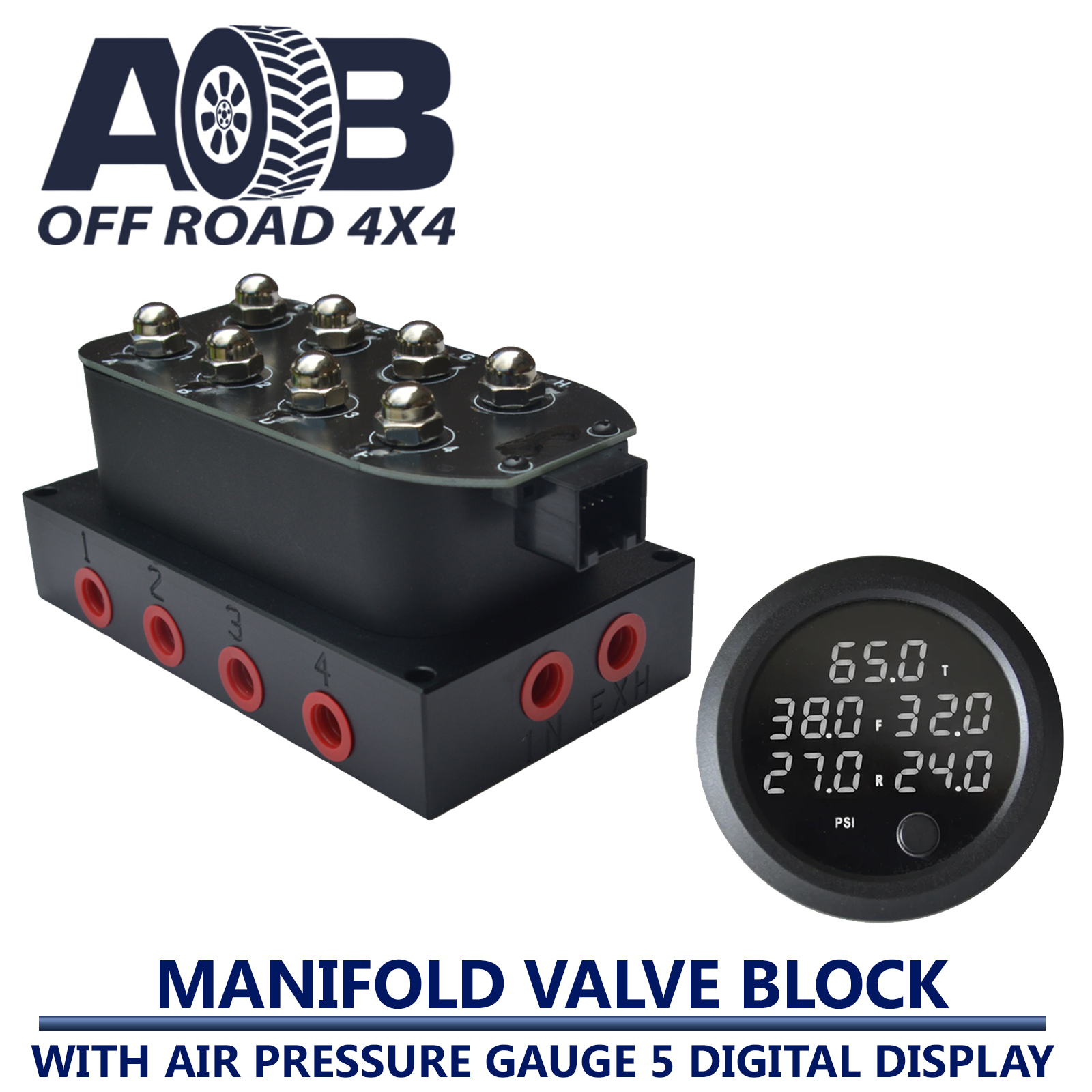

Air Ride Suspension Valve Block Solenoid Valve 4 Port Direct Action + 5 in 1 Air Pressure Gauge WHITE Digital Display

Air Ride Suspension Valve Block Solenoid Valve 4 Port Direct Action + 5 in 1 Air Pressure Gauge Digital Display

Features

Air Ride Suspension Valve Block Solenoid Valve

• 100% Brand New and High Quality
• For use with electronic level controller or any other brand of controller or switches.
• Prewired and numbered port to reduce installation time.
• 1/4" NPT ports for more flexibility of installation.
• High Pressure Rated for operation up to 200 psi.
• Dual Inlet & Exhaust ports for maximum flow (Plug extra inlet if not required).
• Compact Layout for minimal space usage.
• Anodized Aluminum Manifold to prevent corrosion.
• 100% Weather Resistant for harsh under vehicle environments.
• No tee fittings needed to run analog or digital gauges.
• No tee fittings needed between inflate and deflate valve.
• Using less fittings means quickest response times and fewer places to leak.
• Controls 4 bags independently.

5 in 1 Air Pressure Gauge Digital Display

• 100% Brand New and High Quality
• Easy to use and install, seamlessly integrates with the vehicle interior
• 52mm 5-in-1 air pressure gauge with white LED readings of pressure, rapid and accurate response, easy to read.
• High contrast PMVA LCD screen and high quality sensors with heat-resistant.
• The sensors are full electronic, so there is no chance of a leak occurring in tubing going to inside your cab, as there is none! Only wiring.
• Smoke Lens, It is dark when the Power is off.
• Try to avoid having the sensors located where water can accumulate, best place is the top of any air reservoir.

Benefits of a Multiple Reading Digital Air Pressure Gauge Setup

AOB’s air pressure gauges with 5 different pressure readings for trucks and cars, which give you the ability to monitor 5 air pressure sources at the same time. A multiple-reading electronic air pressure gauge is ideal in a multi-valve setup with left air pressure systems versus right, front versus back, and a tank pressure reading. In the case of air leveling systems, you can have kits installed for different parts of your vehicle. If you have two rear air bags, for example, you can monitor the left and right air bags simultaneously.

Why Do I Need a Multiple Reading Air Suspension Gauge?

Having precise, readily-available readings can help drivers keep an eye on the pressure levels of anything from tires to aftermarket air suspension systems. This comes in handy if you’re making purely aesthetic modifications to your vehicle for show, or you’re using it for work tasks like towing large hauls over long distances. Instead of realizing there’s a problem after you’ve lost a significant amount of pressure, the best air pressure gauge for your car or truck will provide you with accurate readings in real time to show if levels are slowly decreasing or running too low to begin with.

Specification

Air Ride Suspension Valve Block Solenoid Valve

• Item Type: Manifold valve block
• Material: alloy
• Color: As pictures shown
• Total Power: 12.6W
• Working Voltage: 12V
• Minimum Open Voltage: 8V
• Grade of Coil Insulation: H/180 C
• Ambient Temperature: -40℃ - +85℃
• Test of Fatigue Life: 10 million times
• Vibration Resistance: 10g/500HZ
• Working Pressure: 0-200 psi
• IN PORT: tank air pressure in port 1/4 NPT x 2 (if only 1 required blank the 2nd)
• OUT PORT: EXHAUST PORT OUT 1/4 NPT x 2 (if only 1 required blank the 2nd)
• Gauge Pressure Sensor Ports: 4 x 1/8 NPT
• Airbag Ports: 4 x 1/4 NPT

5 in 1 Air Pressure Gauge Digital Display

• Voltage: DC12V-24V
• Diameter Size: 2" (52mm)
• Material: Aluminum Alloy & Plastic
• Current: IGN Maximum 0.3A ILM 0.3A
• Color: Black
• Light Color: WHITE
• Unit: PSI
• Display range: 0-200 psi
• Electronic Sensors: 1/8NPT
• Sensor three core wire:
  Red-sensor 5V input
  Black-sensor GND input
  Yellow-sensor signal output
• Power supply two core wire:
  Red-positive pole (ACC)
  Black-negative pole (grounding)

Package

• 1 x Valve Block
• 1 x Harness
• 1 x Mounting Screws
• 1 x 2 1/16” (52mm) Digital Air Pressure Gauge

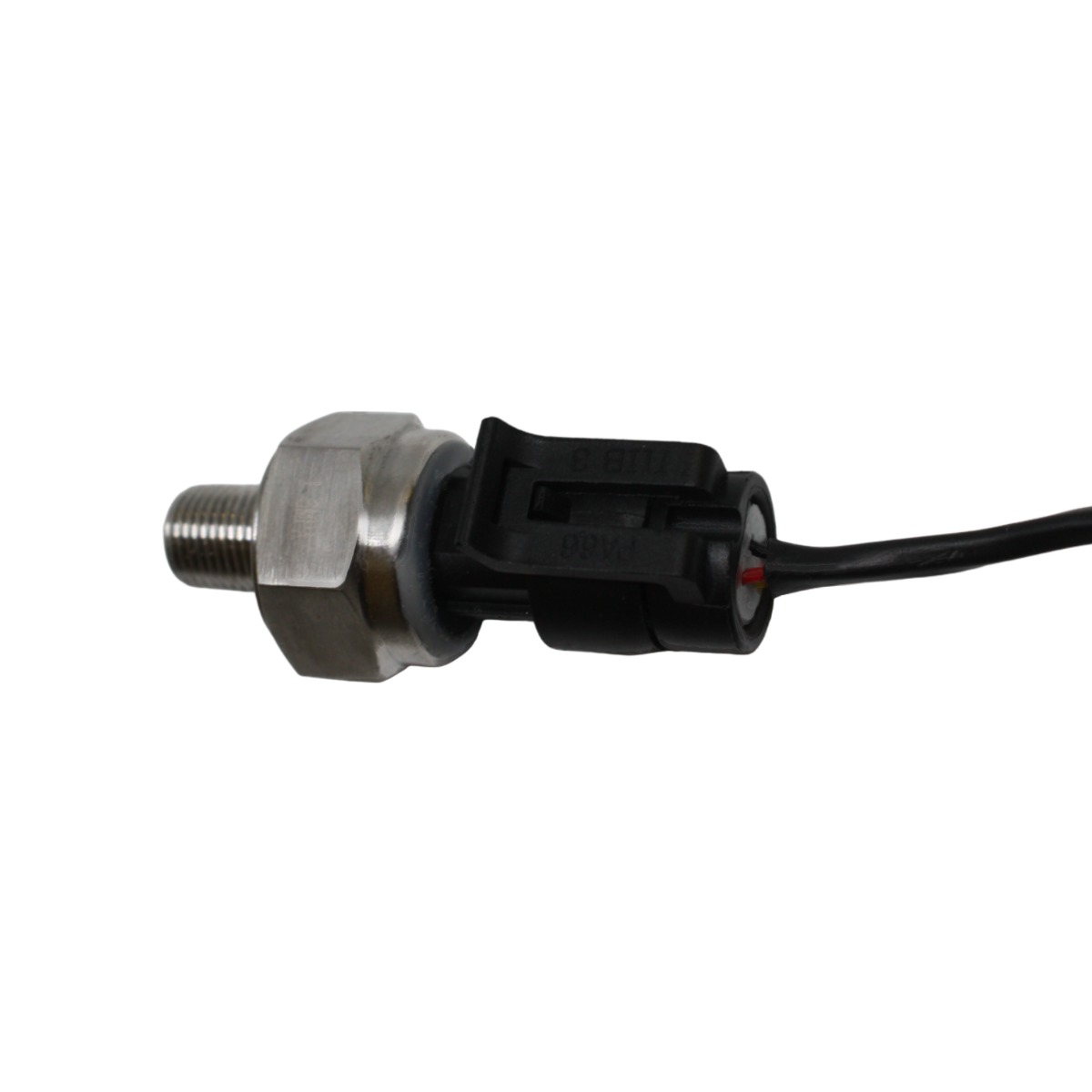

• 5x 1/8-27 NPT Electronic Pressure Sensors with wiring harness
• Mounting Bracket
• Mounting Bracket Hardware
• Installation Instructions

Caution

• Sensors MUST be placed in a dry area to prevent water ingress, where possible mount the sensors at 45 degree angle to reduce risk further.
• Water interference will cause the sensors to not work correctly. Water damage to the sensors will not be covered under warranty.
