EGR Blanking Module 003 Mitsubishi ASX XB 4cyl 2.2L

EGR Delete Cable / Blanking Module 003 Mitsubishi ASX XB 4cyl 2.2L

EGR Blanking Module T01 PRADO 120 3.0L 2006 - 2009

EGR Delete Cable / Blanking Module T01 PRADO 120 3.0L 2006 - 2009

EGR Delete Cable / Blanking Module T01 HILUX KUN26 3.0L 2005 - 2015

EGR Blanking Module for TOYOTA HILUX KUN26 D4D 3.0L 4 cyl TD Engines 2005-2015

It DOES NOT FIT TOYOTA HILUX GUN Series, Prado 120 with 2.8L engines

$193.00
Availability: In stock
SKU
EGMT01-Hilux

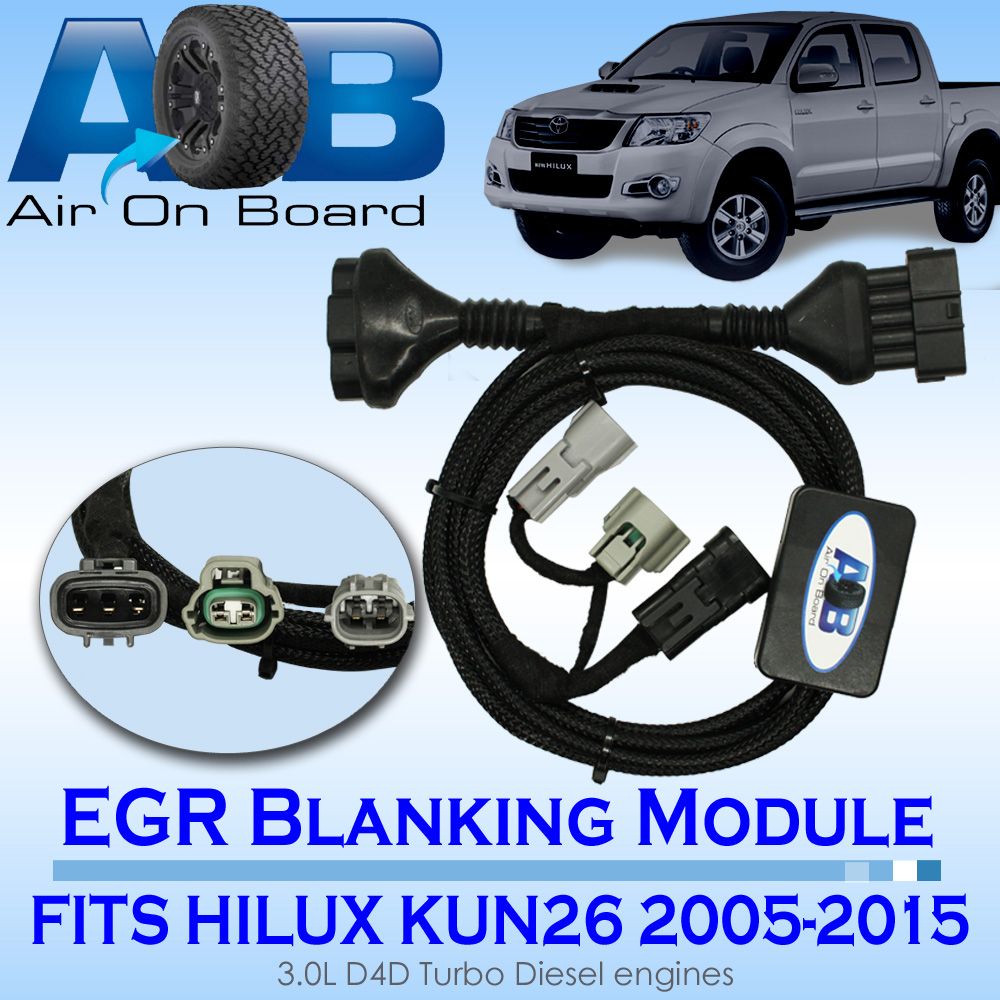

EGR BLANKING MODULE FOR

TOYOTA HILUX KUN26 D4D 3.0L 4 cyl TD Engines 2005 - 2015
TOYOTA PRADO 120s D4D 3.0L 4 cyl TD Engines 2006 - 2009

PLEASE NOTE: THIS MODULE DOES NOT FIT IN THE MODELS WITH 2.8L engines

This module only work on the D4D engine with EGR valve as shown below
EGR valve with proximity sender
The very early D4D engine may have the EGR valve as shown below and this module WILL NOT work with it
EGR valve without proximity sender



This is an exhaust gas recirculation ELECTRONIC MODULE for the above Toyota Models.

Features:

  • A simple plug and play design, no tool required and can be fitted in seconds.
  • Does not set off any engine codes. there are no issues with this modification with new car warranties as you can simply unplug it when heading in for your services.
  • Turbo spools up quicker, and at lower revs

  • Prevents carbon build-up inside intake manifold, and ports

  • Smoother pick up from idle and better fuel economy

  • Cleaner engine oil helping to give longer engine life.
  • Quieter running engine
  • Clean, fresh air intake

  • Lowers soot output

  • No limp mode or fault codes.

WHAT IS THE EXHAUST GAS RECIRCULATION SYSTEM or “EGR”

The EGR valve, or Exhaust Gas Recirculation valve, is a vacuum controlled valve which allows a specific amount of your exhaust back into the intake manifold. The exhaust your EGR valve recirculates reduces the formation of Nitrogen related gasesreferred to as NOx emissions. These recycled exhaust fumes also displace some of the clean air that would otherwise be drawn into the engine. Because the combustion chamber is cooler due in part to the added exhaust fumes and because there’s less oxygen, less NOx is produced and this is a good thing.

However on the bad side, because the EGR’s recycled exhaust gas displaces some of the clean air within the combustion chamber, the engine’s efficiency is reduced. For this reason, the EGR system doesn’t operate during times of heavy acceleration. It also doesn’t operate during idle, because the presence of exhaust gases at idle tends to cause uncontrollable rough running.

EGR systems operate primarily when the vehicle is cruising under light load. Because there is less demand on the engine at these times, the engine can afford to temporarily lose some capacity.

In the real world however, EGR systems often don’t work very well.

The exhaust gases from the vehicle’s engine contain much more than just carbon dioxide: they also contain dozens of chemical by-products, left behind after the fuel was burnt inside the engine. One of these by-products is a fine dust, known as carbon particulates. This dust is mostly unburnt carbon fuel and over time, the carbon dust inside the exhaust gases begins to clog up the EGR system and worse deposits the carbon dust into the clean air intake system on the vehicle.

Disabling the EGR system gives us many benefits

1) Disabling the EGR will certainly stop the carbon particulates from the exhaust clogging up the inlet manifold. See picture of a clogged intake manifold.

2) When Disabling the EGR port you are redirecting 100% of the exhaust gases back out the exhaust via the turbo. The turbo now has total exhaust pressure turning the blades which means the turbo will spool up quicker.

3) No carbon partials entering the vehicle in intake which keeps vacuum and boost lines cleaner

4) Less engine oil contamination. Many carbon partials that enter the air intake through the EGR system find their way into the oil system. This has a tendency to clog the oil galleries and greatly increase premature engine wear.

Things to know before undertaking this Mod

1) It is not a legal modification to change the way the vehicle’s emission control system functions. This modification is recommended for off road and race vehicles. There is however no road side diesel emissions testing of vehicles in Australia. All Diesel emission tests are carried out at the time of original engine certification.

2)This module does not set off any engine codes. there are no issues with this modification with new car warranties as you can simply unplug it when heading in for your services.

In all cases we leave it up to the individual customer to decide if they wish to do this modification.

More Information
Car Make TOYOTA
Car Model HILUX KUN26
Thickness 1.5mm
Material Plastic
