Dual Push Switch ID400s fits NEW Isuzu D-Max DMAX MU-X, Mazda BT-50 3rd Generation MOMENTARY

Isuzu & Mazda OEM Replacement DUAL Push Switch
Twin L.E.D Lights
**Switches will have the image only and no text**

This Switch Suits the following models ONLY:

This 12 volt push switch from AOB is dual MOMENTARY switch designed to operate your 12 volt accessories. it has a face surface size of 32.5mm x 22mm, and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw MOMENTARY PUSH switch
• Single Input Dual Output
• Black hard surface.
• Laser etched Legend
• DUAL upper L.E.D light in amber / white.
• DUAL lower L.E.D light in amber / white.
• One Light is ON when the switch is pressed IN.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.
• Please Note: Switches will have the image only and no text

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

Isuzu & Mazda Switches

Rear picture showing terminals and wiring harness supplied with switch.Wiring diagram will be supplied with switch purchase.

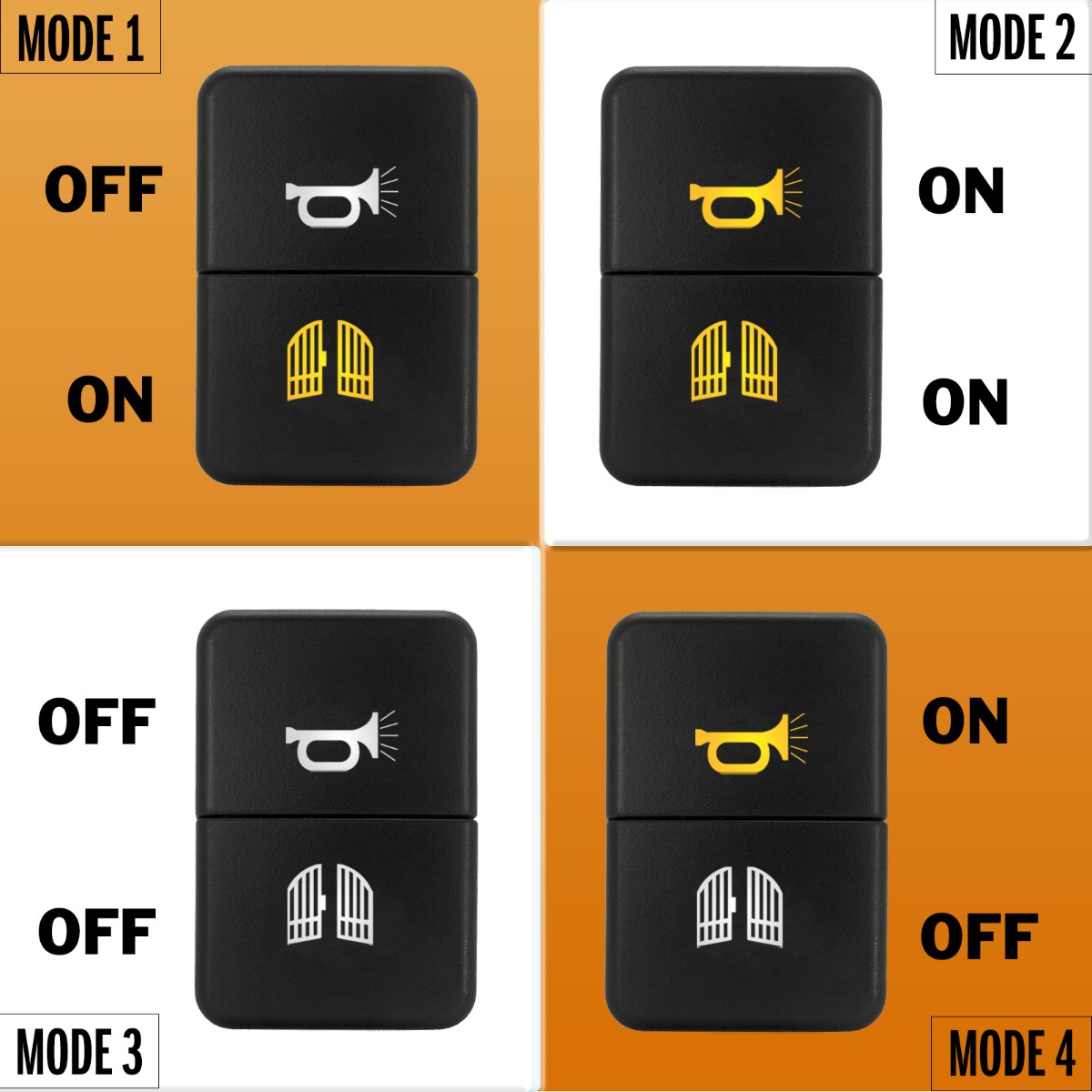

Isuzu & Mazda Switches Illumination

When switch is pressed in the amber light illuminates.

(this is a sample image with the AIR HORN and GATE OPENER logo)
