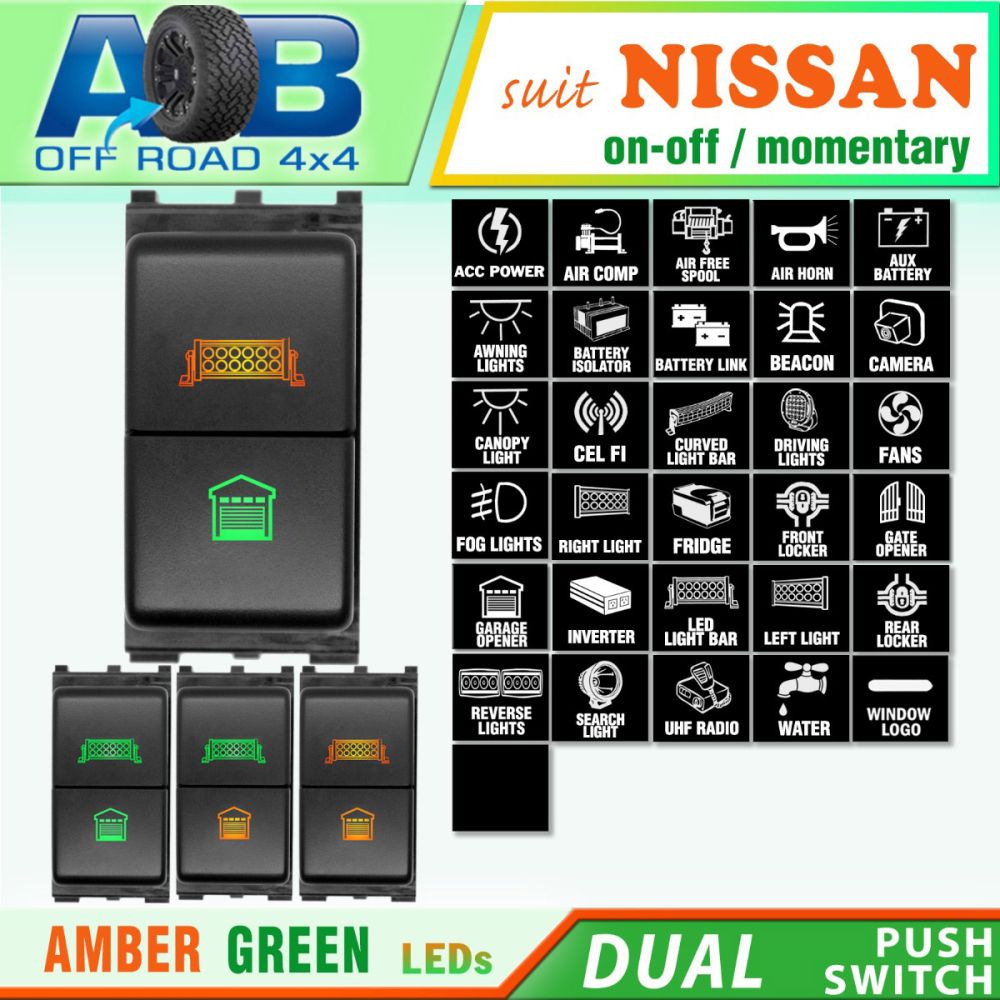

Nissan DUAL Push Switch LED Amber Green ON-OFF MOMENTARY

Nissan OEM Replacement DUAL Push Switch
Twin L.E.D Lights
**Switches will have the image only and no text**

This Switch Suits the following Nissan models ONLY:

This 12 volt push switch from AOB is dual ON-OFF / MOMENTARY switch designed to operate your 12 volt accessories. it has a face surface size of 35 mm x 20 mm, length of 55mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON-OFF / MOMENTARY PUSH switch
• Single Input Dual Output
• Black hard surface.
• Laser etched Legend
• DUAL upper L.E.D light in amber / green.
• DUAL lower L.E.D light in amber / green.
• One Light is ON when the switch is pressed IN.
• One Light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.
• Please Note: Switches will have the image only and no text

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

Nissan Switches

Rear picture showing terminals and wiring harness supplied with switch.Wiring diagram will be supplied with switch purchase.

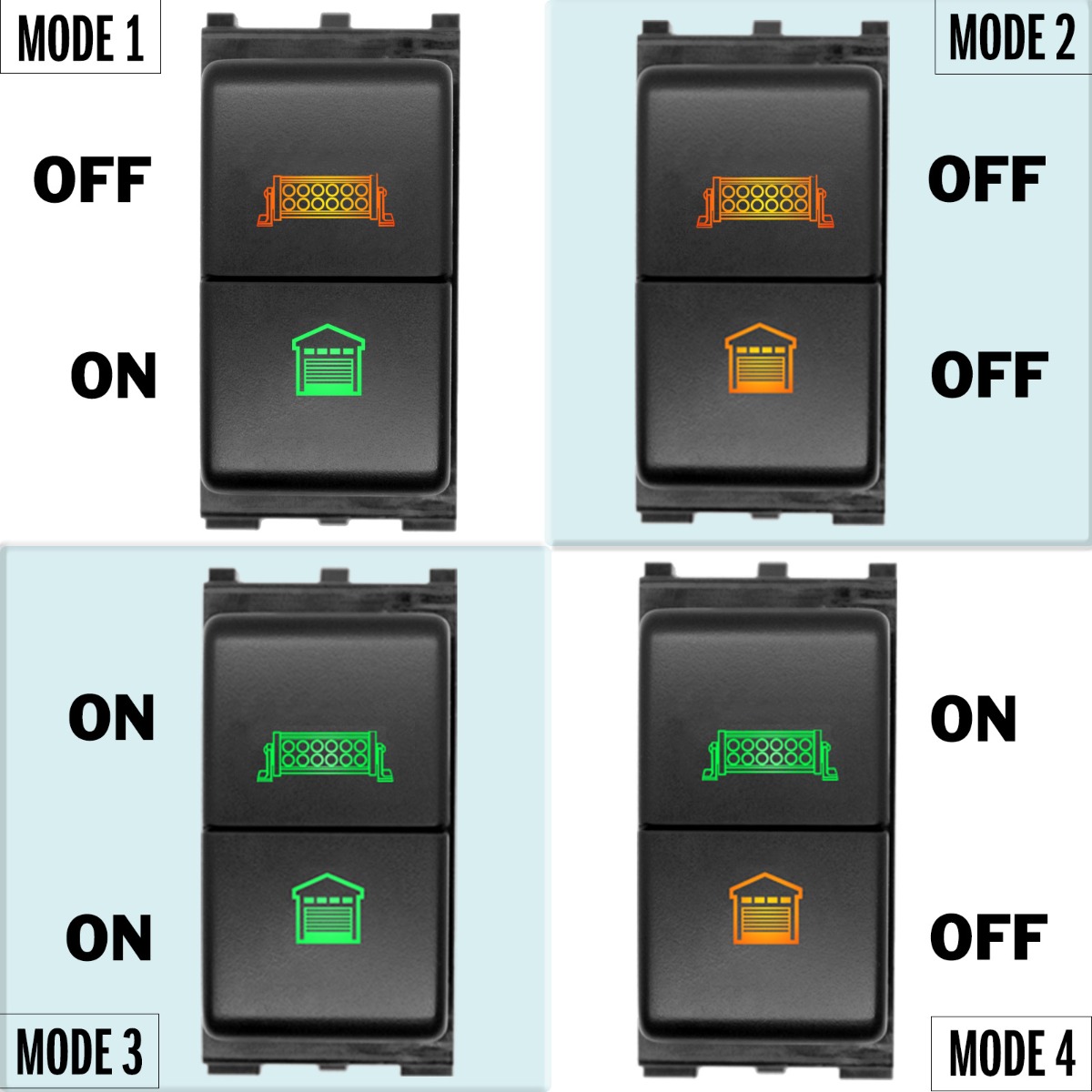

Nissan Switches Illumination

When switch is pressed in the green light illuminates.

The top light (image) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(this is a sample image with the LED LIGHT BAR and GARAGE OPENER logo)
