Air Pressure Gauge Triple Digital Display BLUE + 1/8NPT Sensor Air Ride Suspension

Air Pressure Gauge Triple Digital Display + 1/8NPT Sensor Air Ride Suspension

Features

• 100% Brand New and High Quality
• Easy to use and install, seamlessly integrates with the vehicle interior

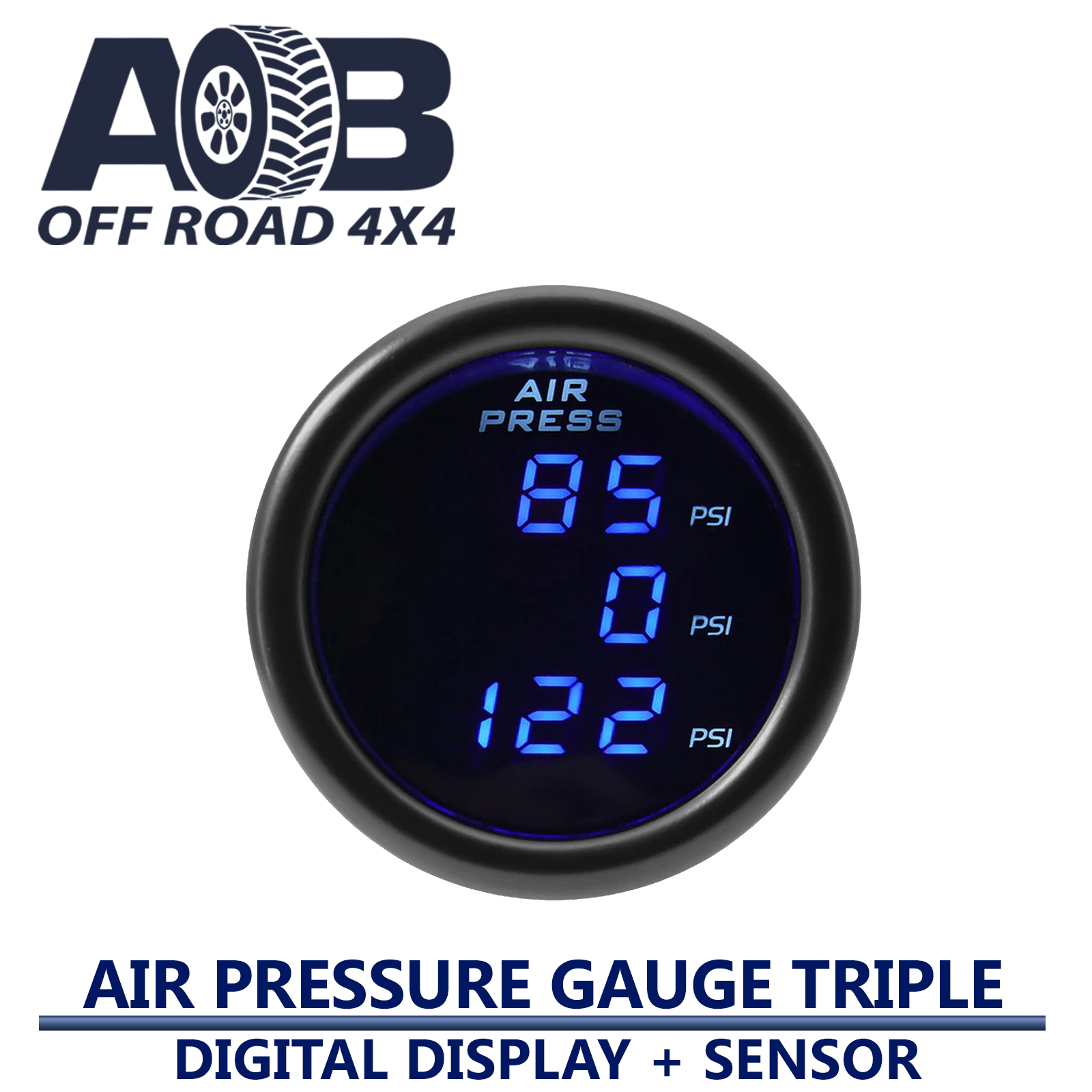

• 52mm triple air pressure gauge with Blue LED readings of pressure, rapid and accurate response, easy to read.
• High contrast PMVA LCD screen and high quality sensors with heat-resistant.
• The sensors are full electronic, so there is no chance of a leak occurring in tubing going to inside your cab, as there is none! Only wiring.
• Try to avoid having the sensors located where water can accumulate, best place is the top of any air reservoir.

Benefits of a Digital Triple Air Pressure Gauge Setup

Get triple the impact with AOB’s triple air pressure gauges for trucks and cars, which give you the ability to monitor three air pressure sources at the same time. A triple electronic air pressure gauge is ideal in a multi-valve setup with left, right and air tank pressure. In the case of air leveling systems, you can have kits installed for different parts of your vehicle. If you have two rear air bags, for example, you can monitor the left and right air bags simultaneously while monitoring air tank pressure.

Why Do I Need a Triple Air Suspension Gauge?

Having precise, readily-available readings can help drivers keep an eye on the pressure levels of anything from tires to aftermarket air suspension systems. This comes in handy if you’re making purely aesthetic modifications to your vehicle for show, or you’re using it for work tasks like towing large hauls over long distances. Instead of realizing there’s a problem after you’ve lost a significant amount of pressure, the best air pressure gauge for your car or truck will provide you with accurate readings in real time to show if levels are slowly decreasing or running too low to begin with.

Specification

• Voltage: DC12V-24V
• Diameter Size: 2" (52mm)
• Material: Aluminum Alloy & Plastic
• Current: IGN Maximum 0.3A ILM 0.3A
• Color: Black
• Light Color: Blue
• Unit: PSI
• Display range: 0-200 psi
• Electronic Sensors: 1/8NPT
• Sensor three core wire:
  Red-sensor 5V input
  Black-sensor GND input
  Yellow-sensor signal output
• Power supply two core wire:
  Red-positive pole (ACC)
  Black-negative pole (grounding)

Package

• 1 x 2-1/16” (52mm) Triple Digital Air Pressure Gauge
• 3 x 1/8-27 NPT Electronic Pressure Sensors with wiring harness
• Mounting Bracket
• Mounting Bracket Hardware
• Installation Instructions

Caution

• Sensors MUST be placed in a dry area to prevent water ingress, where possible mount the sensors at 45 degree angle to reduce risk further.
• Water interference will cause the sensors to not work correctly. Water damage to the sensors will not be covered under warranty.
